AYANEO Super Power Docking Station

Make your Windows handheld more comfortable to use.

Professional strength, not marked false

Better handheld expansion dock station

AYANEO has repeatedly overturned and rebuilt, adjusted the design structure, and re-manufactured the mold. The final decision to the full use of better components, with the latest technology, just to give AYANEO better user experience.

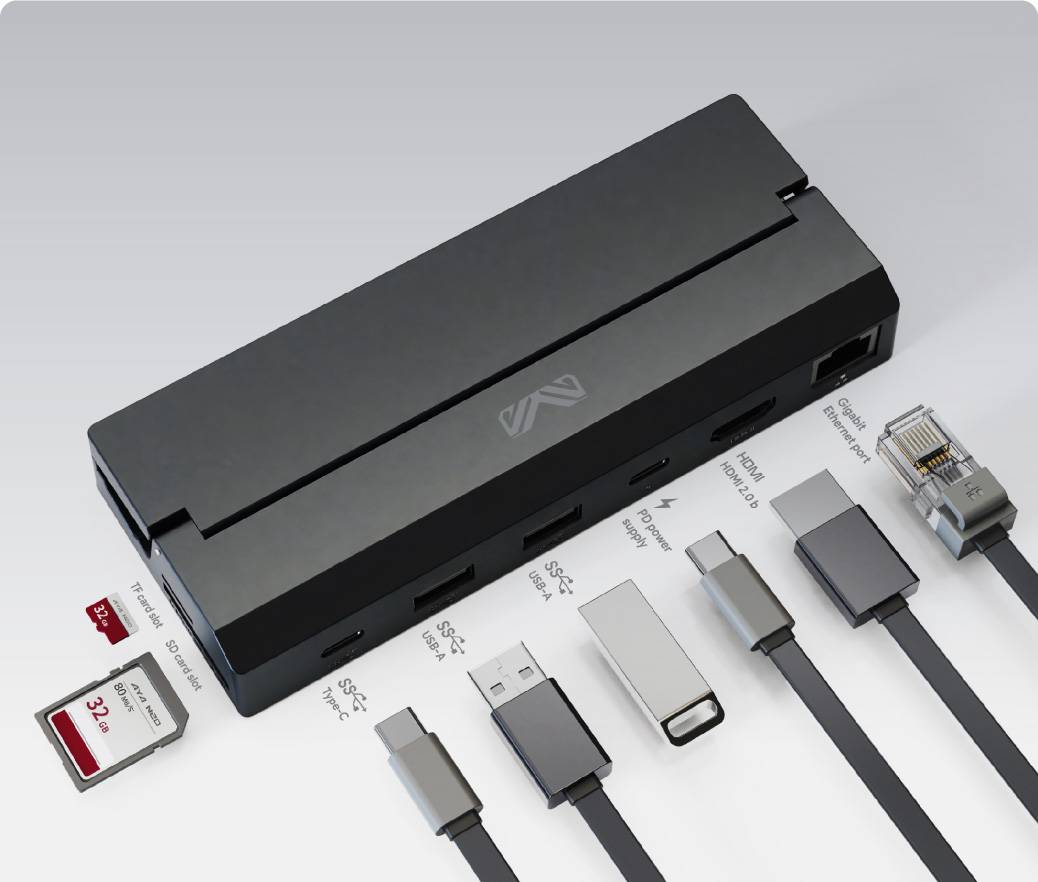

8 expansion interfaces

  • Type-C

    External keyboard, mouse, mobile hard disk and other peripherals can be connected.

    In addition, the power identification interface can also be used to power handhelds and peripherals.

  • USB-A

    External keyboard, mouse, printer and other peripherals can be connected.

  • HDMI 2.0 b

    It can be connected to an external monitor, and supports up to 4K@60Hz ultra-clear image quality output.

  • Gigabit Ethernet port

    It can be connected to the wired network, games and downloads are high-speed and stable, and the anti-interference is stronger.

  • SD, TF card slot

    external camera memory card, mobile phone tablet memory card, plug and play.

Ingenious design, equipped with LED.

One-piece dust-proof design to avoid accidental damage; single-direction interface for easy cable management; color-changing LED indicator, working status at a glance; small size, convenient for travel.

High-speed USB 3.1

It has a sufficient number of interfaces and can connect multiple peripherals at the same time. The spacing is loose and will not be entangled, and it supports up to 10 Gbps data transmission.

Support PD fast charge, play while charging

It supports PD 3.0 fast charging protocol, compatible with mainstream PD power supplies, and provides up to 60W power supply.

4K HD display

The super power docking station for AYANEO handhelds provides HDMI 2.0b interface and supports up to 4K@60Hz ultra-clear screen projection. You can put the AYANEO high-definition picture on the large-screen display to experience a more relaxed and pleasant visual experience.

Specifications
  • Product Name AYANEO Super Power Docking Station
  • Surface Materia ABS+PC
  • PD Charging power 60W
  • Ethernet

    Gigabit Ethernet port (RJ-45 connector)

  • USB Specification

    USB 3.1 Gen 2 (up to 10Gb/s)

  • USB transmission speed 10Gbps
  • Video Suppor DisplayPort1.4 4K/60Hz HDMI2.0b
  • Interface Type

    Type-C (up to 10Gb/s)

    Two USB-A ports (up to 10Gb/s)

    Type-C Power connector (60W PD 3.0)

    HDMI 2.0b port

    Gigabit Ethernet port (RJ-45 connector)

    SD card slot

    TF card slot

  • Size 151mm x 60.5mm x 24mm
  • Weight 135g
  • Adapted models

    AYANEO 2021

    AYANEO 2021 Pro

  • Origin China, Guangdong
  • Product grade Qualifie
